76% off
WaterProof PVC Light-Filtering Zebra Shades
$45.00 USD
$185.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Measurement & Installation
Measuring is easy - Let us show you how!
Here are some quick tips and notes to remember:
- Use a steel measuring tape
- Round down to the nearest 1/8" for width
- Round up to the nearest 1/8" for height
- Always reference product specifications for complete measuring instructions
Specifications and Installation
Depth and Space Requirements
| Mounting Type | Inside Mini Depth | Inside Mount Flush Depth | Outside Mount Minimum Space |
|---|---|---|---|
| Cordless Lift | 2 1/2" | 3" | 2" |
| Fabric Insert Cassette | 2 5/8" | 3 1/4" (Cassette) | 2" (All Other Features) |
| Aluminum Cassette | 3 1/4" | 3 3/4" (Large Cassette) | 2" (All Other Features) |
Width and Height Ranges
| Lift Type | Width Range | Height Range |
|---|---|---|
| Cordless Lift | 14" - 95" | 12" - 105" |
| Continuous Cord Loop | 14" - 103" | 12" - 120" |
| Motorized Lift | 20" - 96" | 18" - 120" |
Fabric Deductions
| Mounting Type | Cordless Lift | Continuous Cord Loop | Motorized Lift |
|---|---|---|---|
| Fabric Insert Cassette | 22mm = 7/8" total deductions | 26mm = 1 1/8" total deductions | 23mm = 7/8" total deductions |
| Aluminum Cassette | 25mm = 1" total deductions | 31mm = 1 1/4" total deductions | 28mm = 1 1/16" total deductions |
Light Gap - Open Roll
| Side | Cordless Lift | Continuous Cord Loop | Motorized Lift |
|---|---|---|---|
| Chain Side | 18mm = 11/16" total deductions | 20mm = 6/8" total deductions | 18mm = 11/16" total deductions |
| Opposite Side | 17mm = 11/16" total deductions | 17mm = 11/16" total deductions | 17mm = 11/16" total deductions |
Light Gap - Type A Cassette
| Side | Cordless Lift | Continuous Cord Loop | Motorized Lift |
|---|---|---|---|
| Chain Side | 17mm = 11/16" total deductions | 21mm = 6/8" total deductions | 18mm = 11/16" total deductions |
| Opposite Side | 5mm = 5/16" total deductions | 5mm = 5/16" total deductions | 5mm = 5/16" total deductions |
Light Gap - Type D Cassette
| Side | Cordless Lift | Continuous Cord Loop | Motorized Lift |
|---|---|---|---|
| Chain Side | 15mm = 9/16" total deductions | 21mm = 6/8" total deductions | 18mm = 11/16" total deductions |
| Opposite Side | 10mm = 3/8" total deductions | 10mm = 3/8" total deductions | 10mm = 3/8" total deductions |
Chain Guard Lengths
| Length of Shade | Length of Chain Guard |
|---|---|
| ≤ 36" | 13 1/4" |
| 36 1/16" - 54" | 25 1/4" |
| 54 1/16" - 72" | 37 1/4" |
| 72 1/16" - 90" | 49 1/4" |
| 90" | 61 1/4" |
Recommendations and Limitations
Important Notes and Motorization Details
Important Notes
- There may be a +/- 1/8 inch measurement discrepancy. When measuring curtain dimensions, do not account for factory deductions. Detailed deduction information can be found in the table below.
- In order to ensure uniform fabric alignment, it is critical that you indicate on your order whether shades are to be installed side-by-side or in the same room.
- Fabric colour can vary from one dye lot to another. To ensure that all materials are from the same dye lot, please order shades for the same room at the same time.
Additional Information
- According to legal requirements, safety devices must be installed on chains to prevent the formation of hanging loops. The safety device should be installed at the farthest point from the control mechanism to prevent slack in the cord loop.
- Continuous cord loops come with white chains.
- Fabric-inserted cassette tracks use the same fabric as the curtain, with the fabric direction consistent with the curtain. The matching bottom rail is white.
- Aluminum cassettes are available in five colors, with the bottom rail matching the cassette color.
- Product can only be mounted to the top or rear of window casing. Side mounts not available.
- Because of the design of this window treatment, no extra fabric is added to roller.
- Depending on the height of the shade, opaque sections may not align in the fully lowered position.
Motorization Details
- Motorized remotes are not included. At least one remote is required per order, and one motorized charger is included in each order.
- It is strongly recommended to set up a dedicated channel for each curtain.
- A 15-channel remote can operate one curtain per channel, controlling up to 15 curtains in total.
- The remote range is approximately 260 feet.
- An additional Hub allows control of motorized curtains via Alexa and the free, downloadable Tuya Smart app, compatible with iOS and Android systems.
Shipping & Return
- Enjoy free shipping on all orders within the contiguous United States.
- Each is custom-made to your exact specifications and generally ships within 3 to 5 business days after your order is placed.
- We hold all orders for 24 hours before processing to allow time for any adjustments to measurements or color choices.
- Please note that shipping may take an additional 3 to 7 business days.
- For customized shades, and blinds, we usually will not accept returns. Click to see more return policy
What is Zebra Blinds
Transform your home with sleek, modern style and ultimate functionality, all in one. Our Waterproof Light-Filtering Zebra Blinds are designed to bring texture, dimension, and versatility to your windows. Struggling to find the perfect balance between light control and privacy? These blinds have you covered!
Crafted from a high-quality blend of 35% polyester and 65% PVC, they offer excellent durability, water resistance, and easy maintenance, making them ideal for bathrooms, kitchens, or any space prone to moisture. The design features 3-inch solid panels alternating with 2-inch sheer fabric, creating a striking zebra pattern that beautifully diffuses natural light.
WaterProof PVC Light-Filtering Zebra Shades
Why Add Motorization?
- Smart home integration
- Voice, app, or remote activated
- Automated scheduling

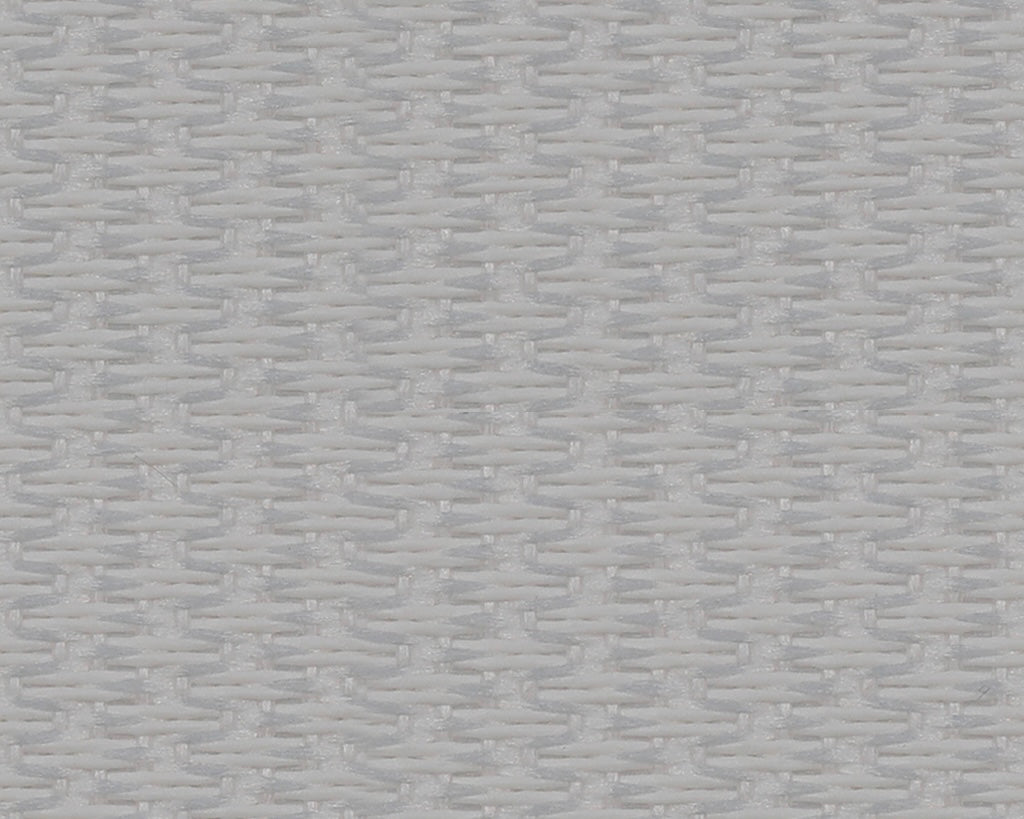

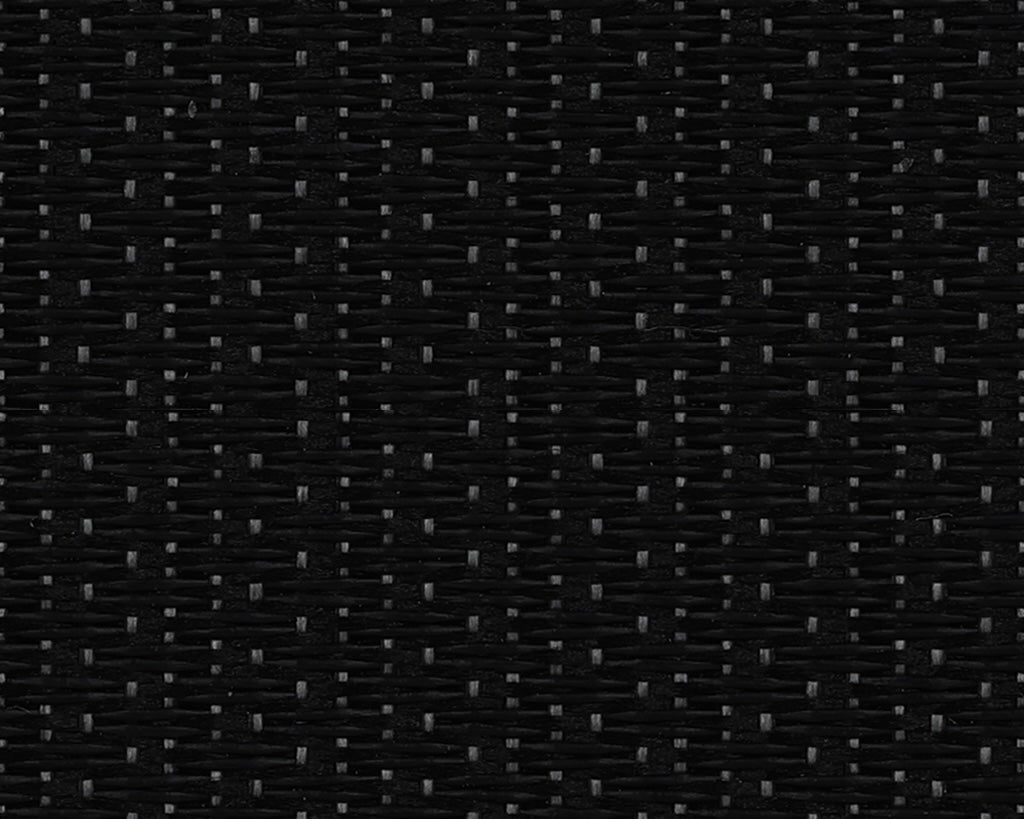

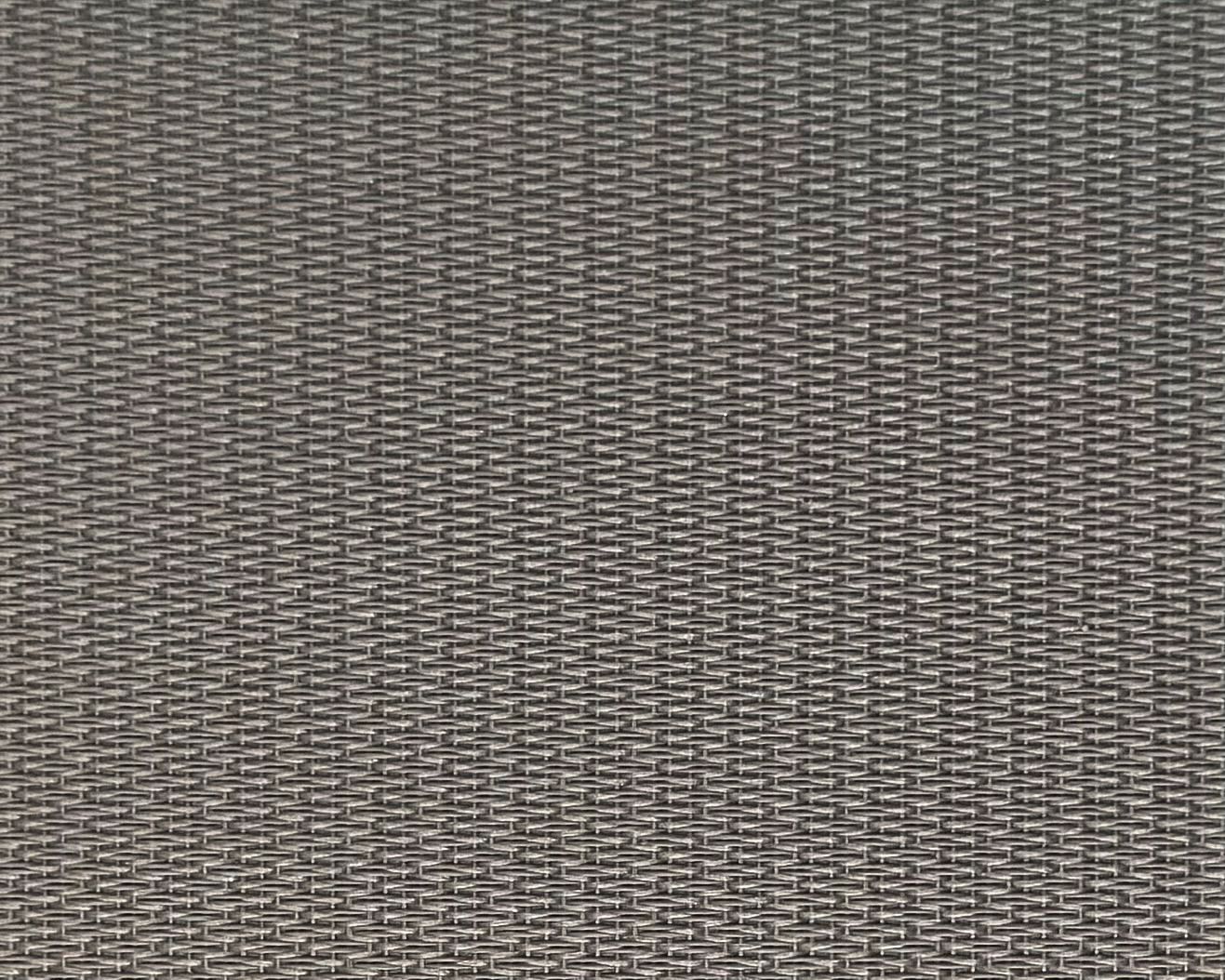

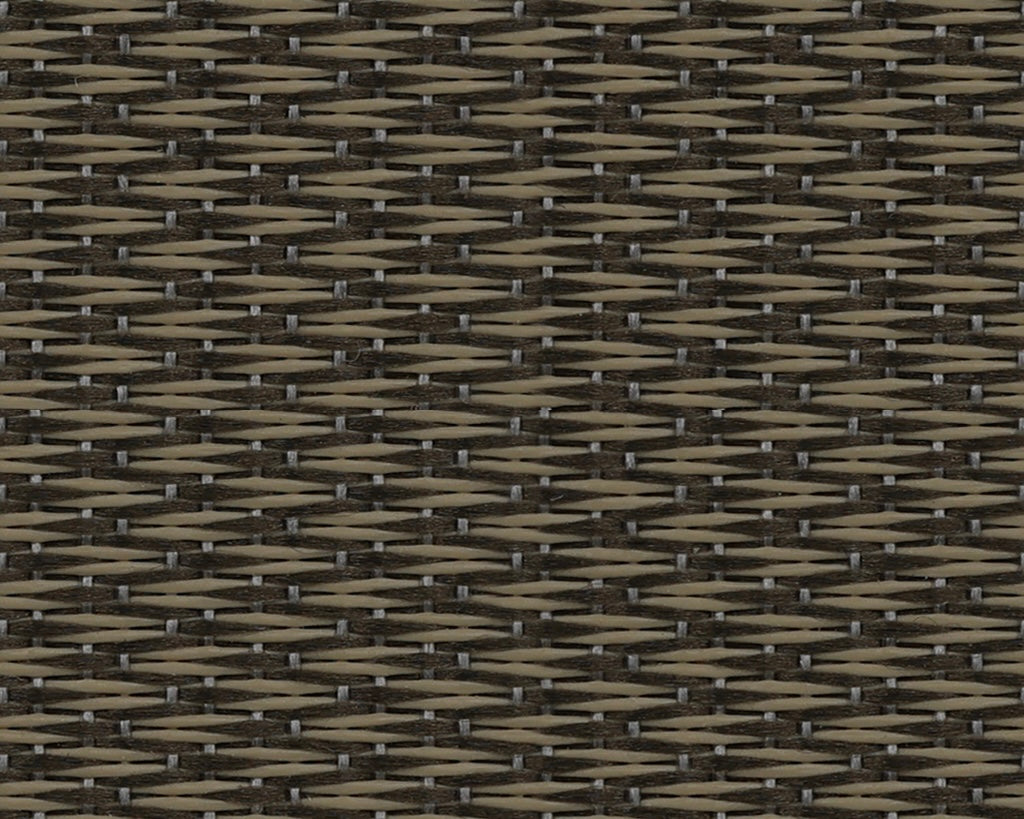

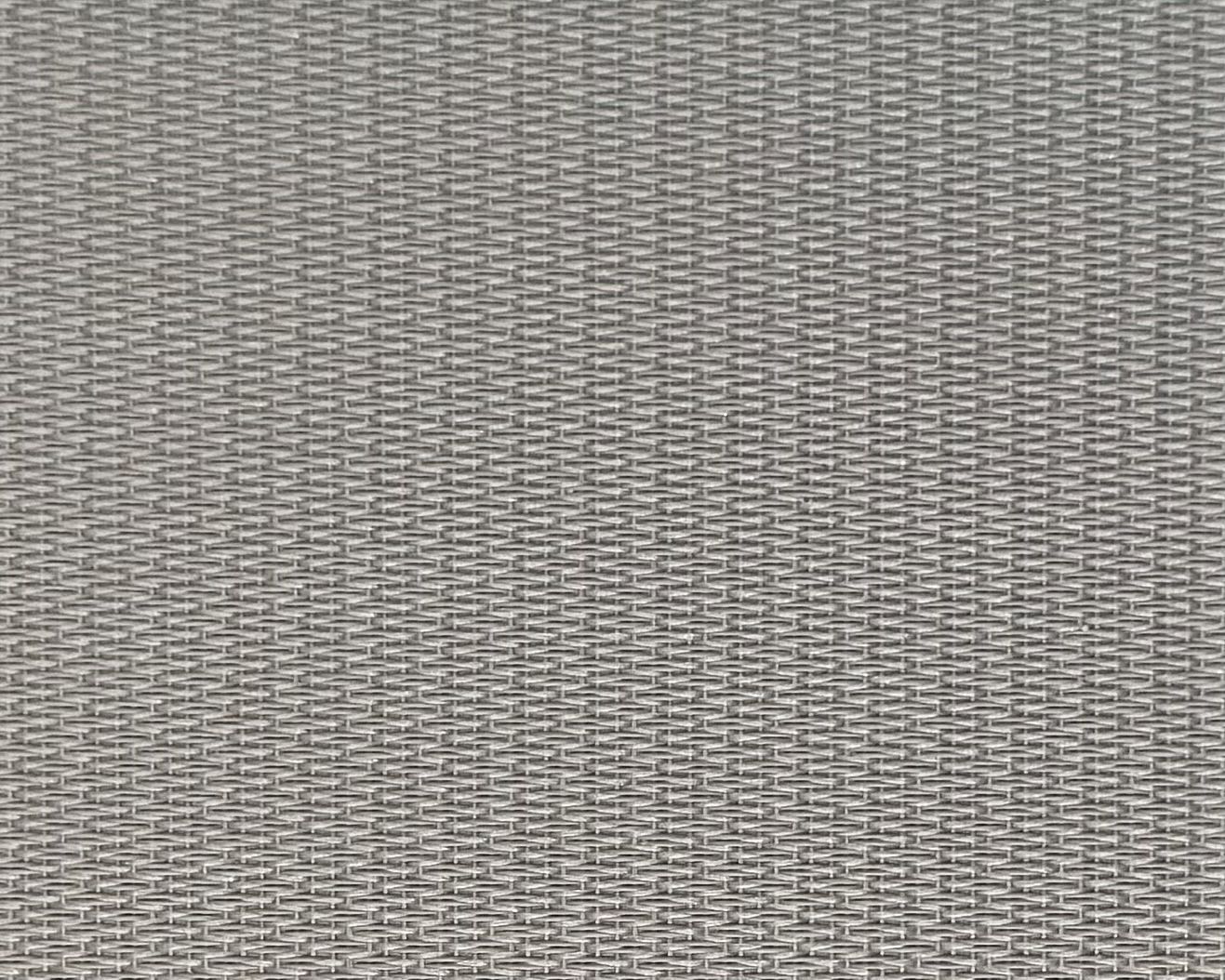

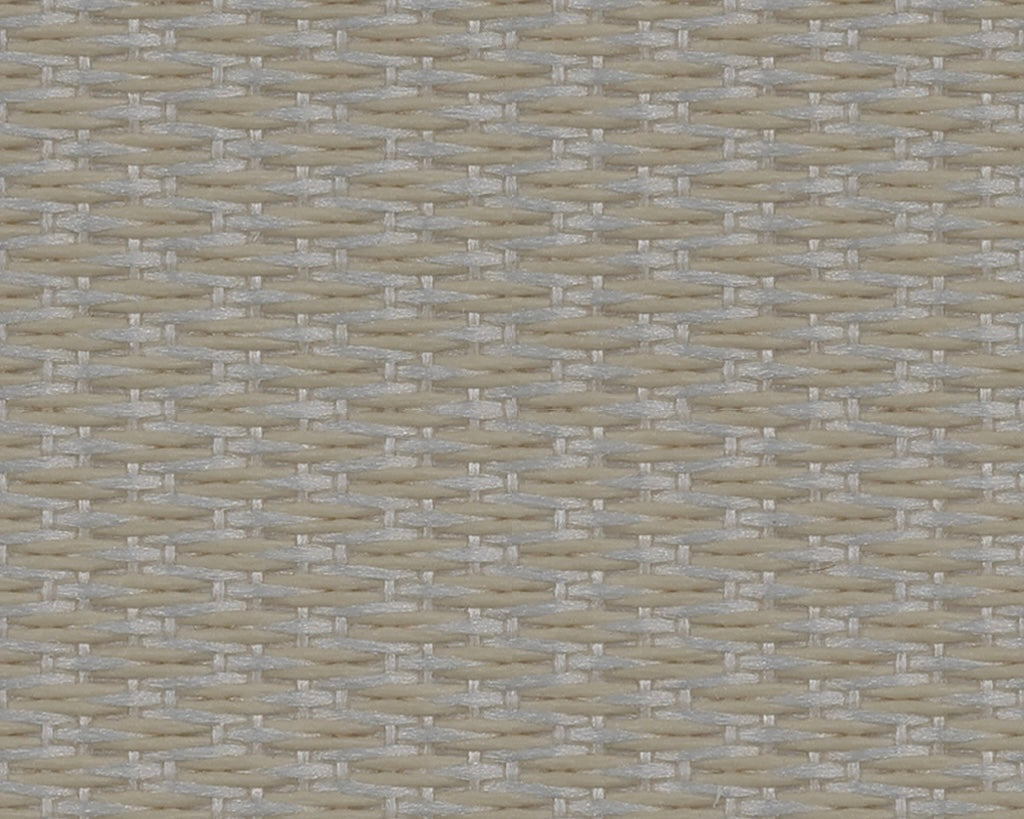

Get FREE Fabric Swatches!
Explore the perfect window treatments for your space with our Sample.
